Product status: conventional product (originating in Guangzhou-China)
Place of Origin: China (Guangzhou)

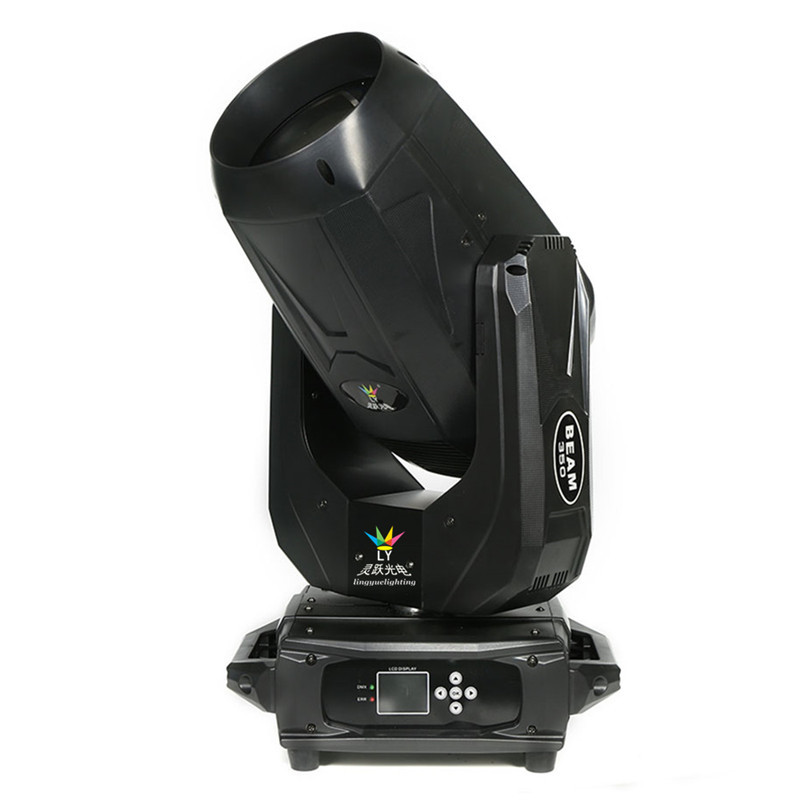

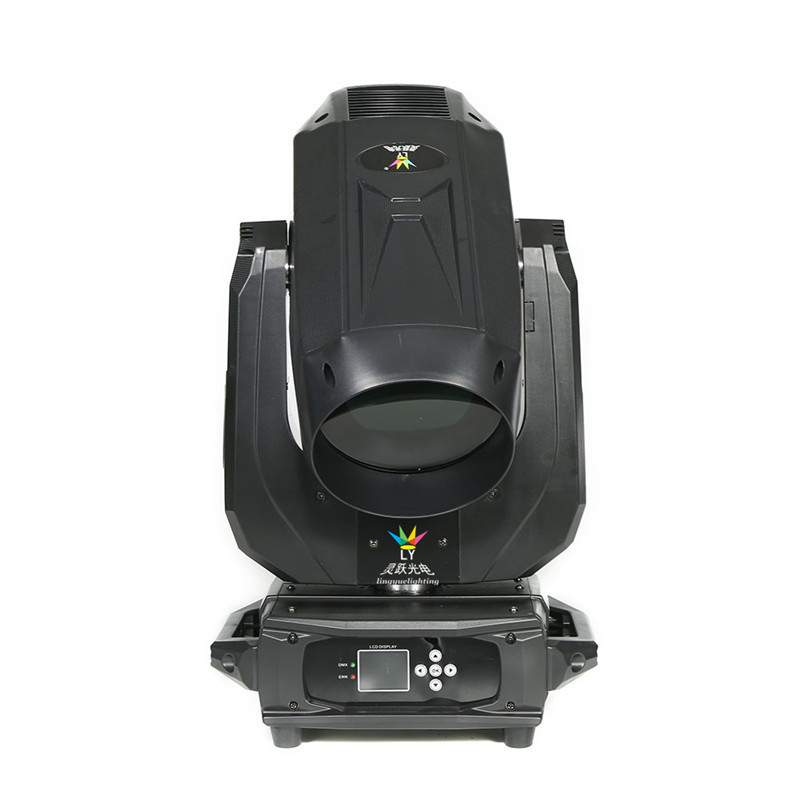

Product model: LY-350S 350W 17R beam light
Product power: AC220V/110V, 50/60Hz
Obtained certification: CE, ROHS, quality inspection report
Product packaging: carton (can be customized air box)
Brand Name: Lingyue Optoelectronics
Production method: OEM, ODM, OBM
Product model: LY-350S
Product name: 17R 350W beam light
Product parameters:
Rated voltage: AC100V~240V ±10﹪, 50Hz～60Hz
Total power: 600W
Bulb: Youdeng/Japan Phoenix/Philips 350W (2000 hours)
Optical lens: 6 lens lens group
Rotation angle: 540° in the horizontal direction, 270° in the vertical direction (16bit precision scanning)
Beam angle: 0°-3.9°
Control mode: self-propelled, master-slave, DMX512, voice control
Channel mode: 16 international standard DMX512 channels
Electronic focus: high-precision glass optical lens, 50000LUX at 20 meters
Strobe: Strobe speed is 1-20 times per second, pulse strobe, synchronous and asynchronous strobe.
Dimming: 0%-100% linear dimming
Atomization: 0%-100% linear atomization, 1 independent atomization effect
Pattern plate: 17 pattern pieces + white circle, with pattern jitter and pattern arbitrary positioning function
Color wheel: 1 fixed color wheel has 14 color chips, with half-color effect, linear color conversion and two-way variable speed rotation rainbow effect
Prism disk: double prism effect, can be superimposed, 8/16/24 prism or waffle prism (8+8+8 or 8+16+24 optional) can be rotated forward and backward, and has prism positioning function, prism atomization Features
Focusing: with linear focusing function, 2 meters to infinitely adjustable pattern definition.
Display: LCD liquid crystal display + buttons or touch screen
Waterproof rating: IP20
Lamp net weight: 15kgs
1 set/carton packing size: 39x32x66cm gross weight: 21kgs
2 sets/air box packing size: 71x38x75cm gross weight: 66kgs
Certification and report: CE/ROHS/ISO9001/quality inspection report
Standard accessories: hardware hook, aluminum light hook, signal wire, power cord, safety rope, instruction manual
Installation method: standing, upside down, side hanging
Customization requirements: Customization is not supported for less than 50 units, and the delivery time for customized models will be increased, 10-15 days (customization such as light source, silk screen LOGO, packaging, etc.)
Scope of application: KTV, music bar, bar, disco, nightclub, evening party, hotel wedding, large-scale commercial performance, etc.
